1997-2013 Chevy GMC LS V8 E1841P Stage 3 Camshaft Kit (.595" Lift) w/ Springs, Pushrods, Valve Seals & Timing Gasket

In stock
SKU: TLZKIT-006
Ships within 24 hours by Amazon
Regular price $229.99
Product details
  • SKU TLZKIT-006
  • Include •1x E1841P Stage 3 Camshaft (Specs: 238/242, .595"/.595" Lift, 112 LSA)
    •16x PAC-1218 Beehive Valve Springs
    •16x 7.400" Chromoly Pushrods
    •16x Valve Stem Seals(Includes Water Pump Gaskets & Front Crank Seal)
    •1x Timing Cover Gasket
    •1x Harmonic Balancer Bolt

Do you have questions about this product?

Ask an expert!

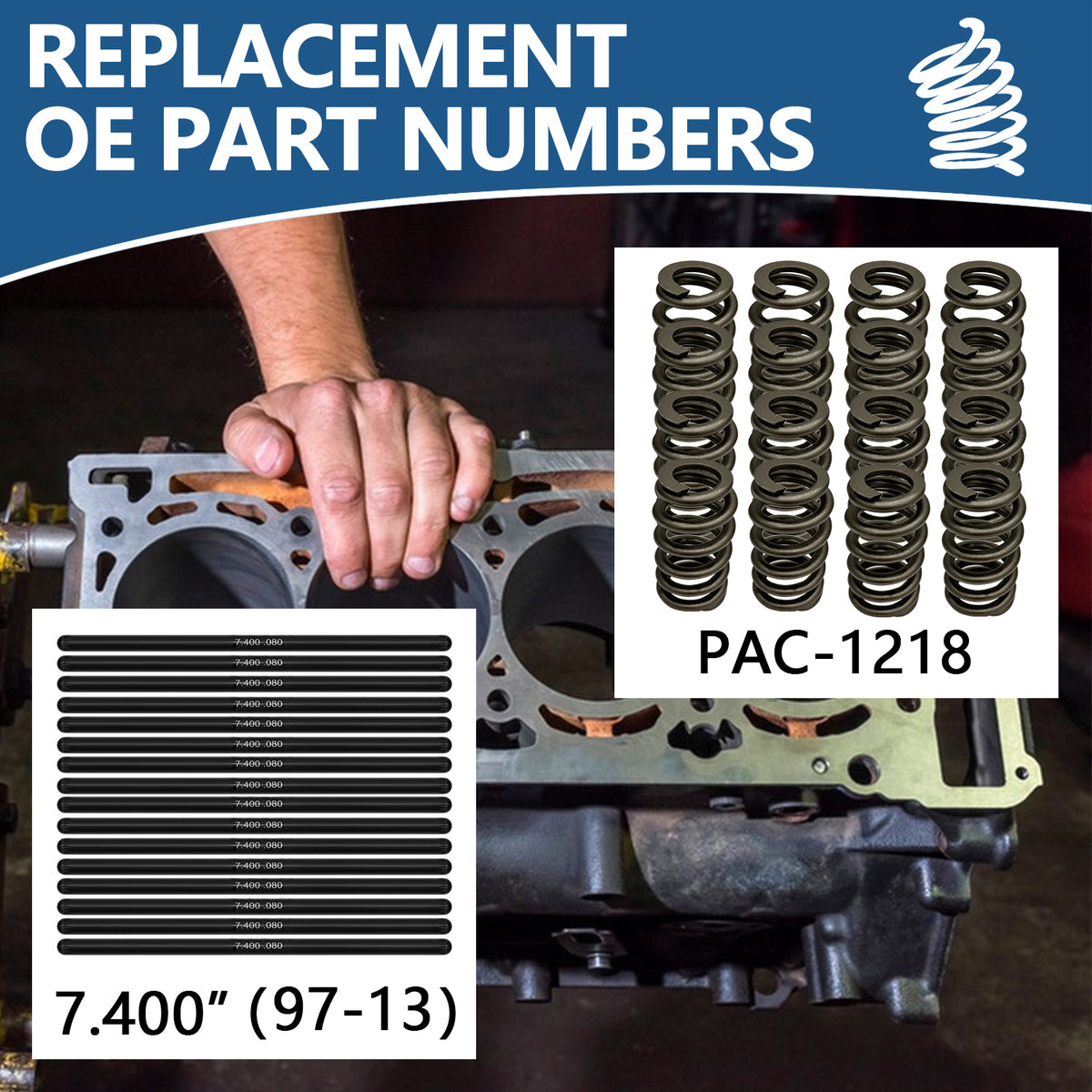

Interchange/OE Part Numbers: E1841P, PAC-1218.

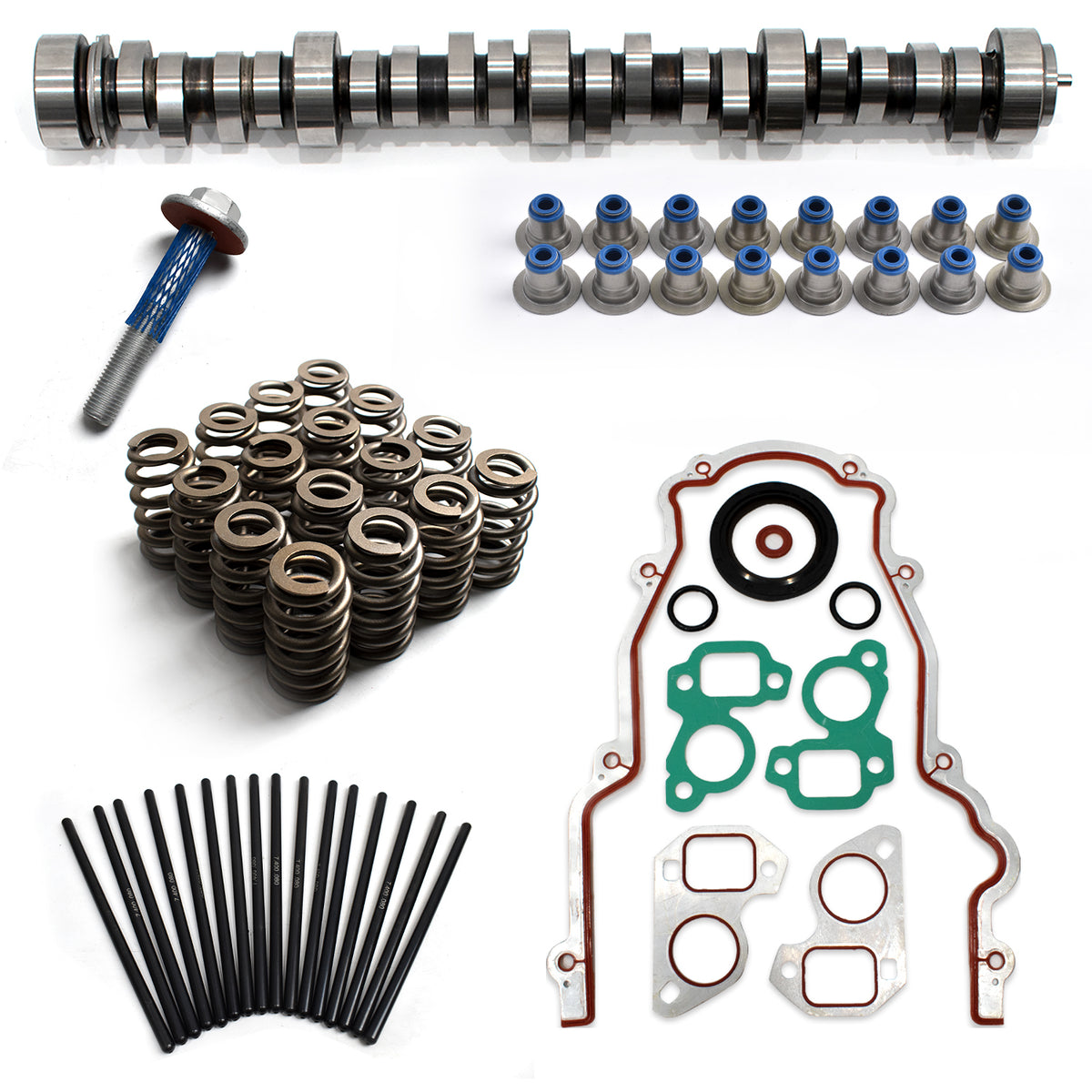

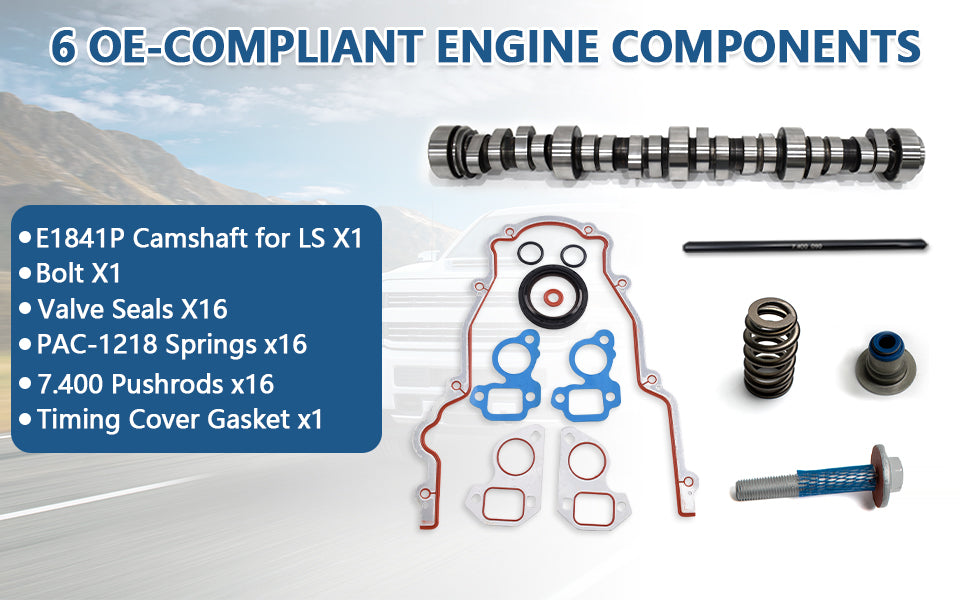

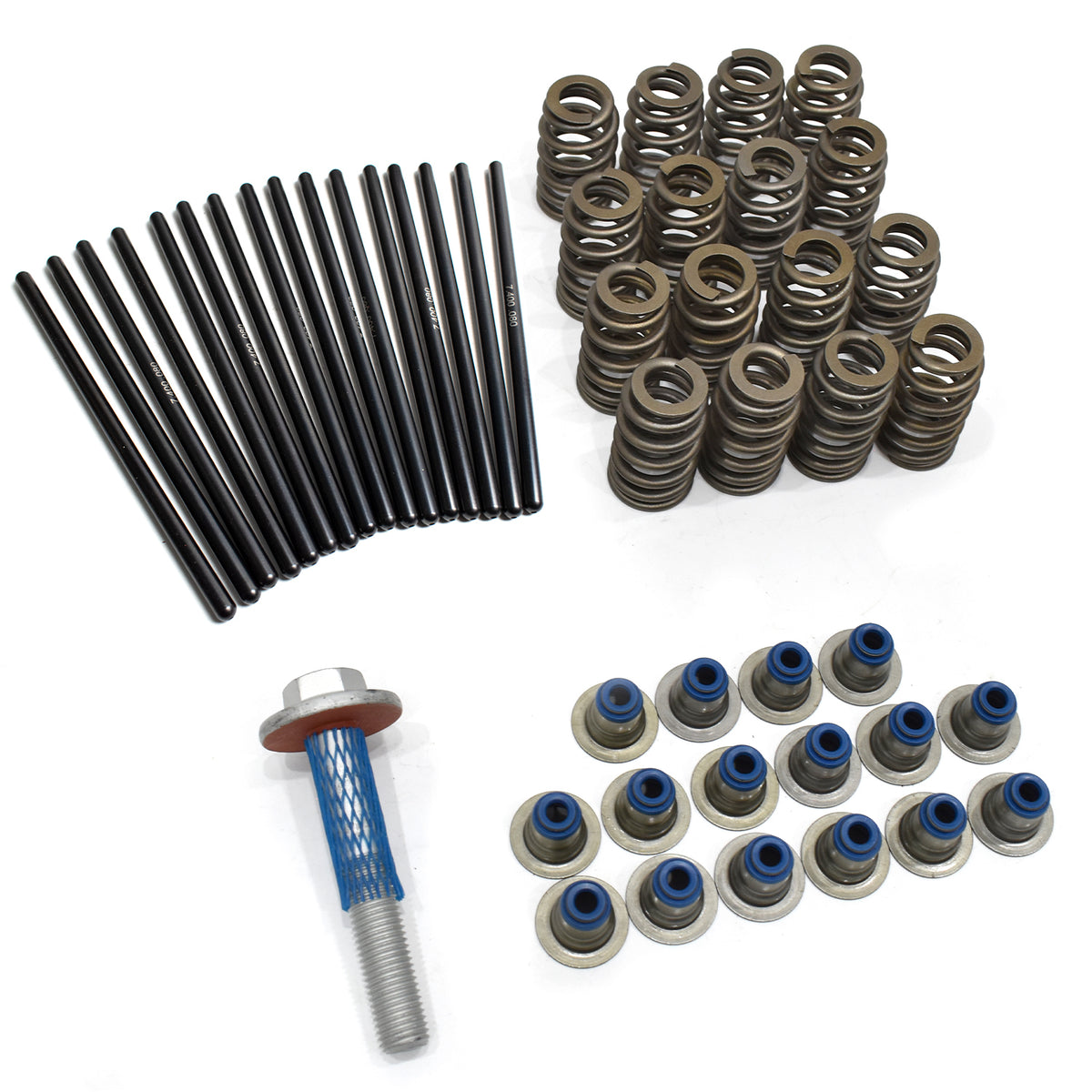

What's Included in the Package List:

  • 1x E1841P Stage 3 Camshaft (Specs: 238/242, .595"/.595" Lift, 112 LSA)
  • 16x PAC-1218 Beehive Valve Springs
  • 16x 7.400" Chromoly Pushrods
  • 16x Valve Stem Seals(Includes Water Pump Gaskets & Front Crank Seal)
  • 1x Timing Cover Gasket
  • 1x Harmonic Balancer Bolt

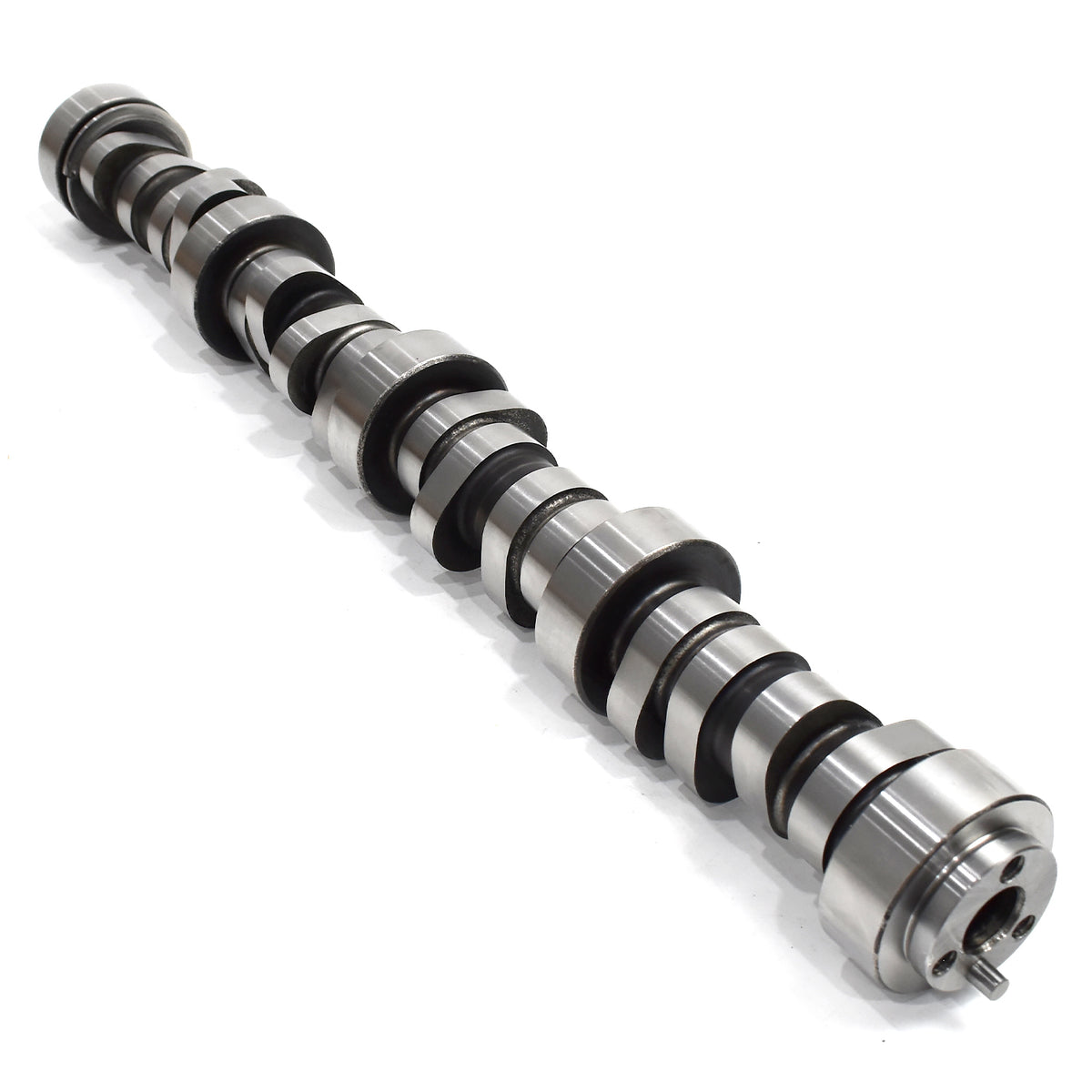

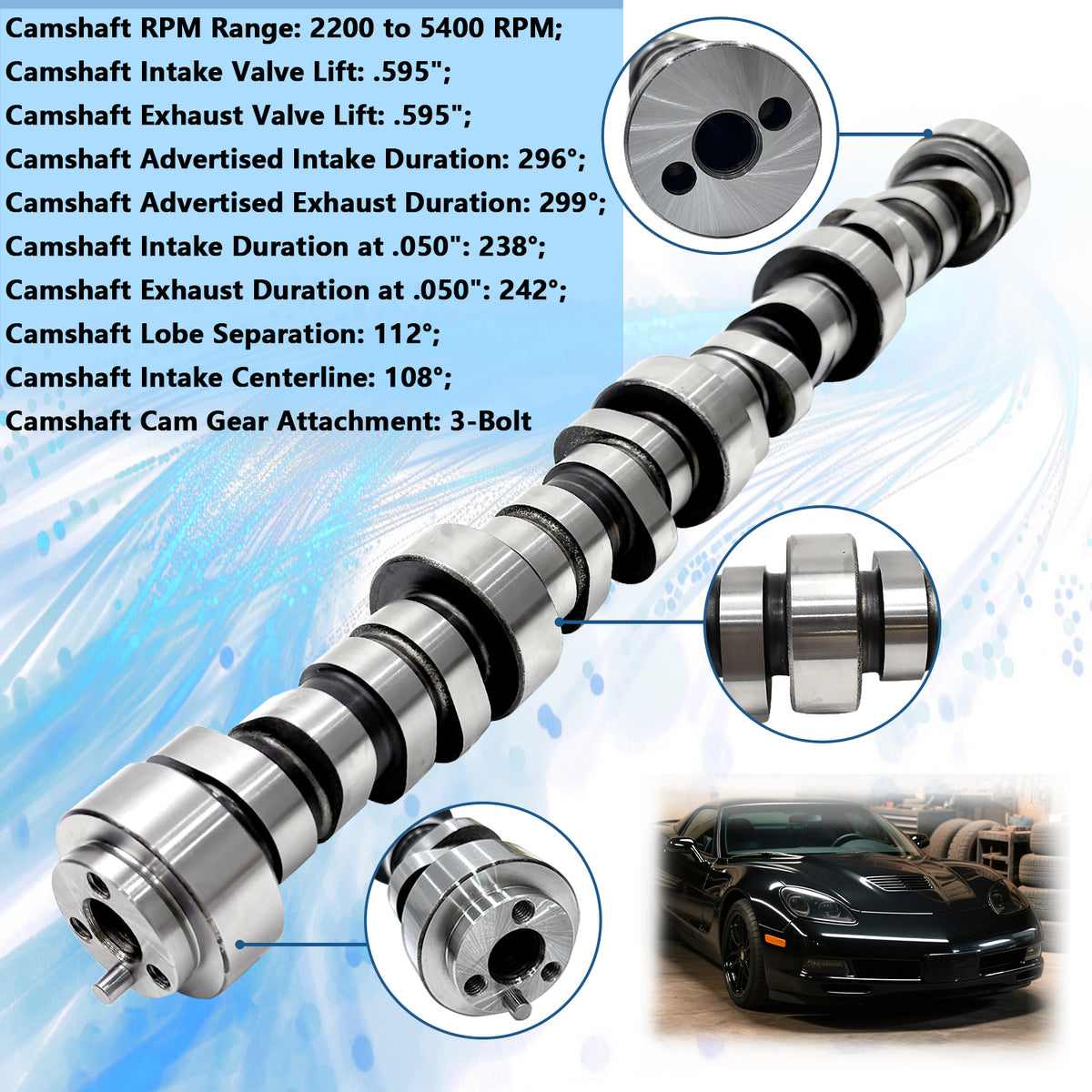

Camshaft Specifications:

  • Camshaft RPM Range: 2200 to 5400 RPM
  • Camshaft Intake Valve Lift: .595"
  • Camshaft Exhaust Valve Lift: .595"
  • Camshaft Advertised Intake Duration: 296°
  • Camshaft Advertised Exhaust Duration: 299°
  • Camshaft Intake Duration at .050": 238°
  • Camshaft Exhaust Duration at .050": 242°
  • Camshaft Lobe Separation: 112°
  • Camshaft Intake Centerline: 108°
  • Camshaft Cam Gear Attachment: 3-Bolt

Shipping & Package Specifications:

  • Item Weight:  17.81 pounds
    Package Dimensions: 23.8 x 11.6 x 5.2 inches

Unlock massive power gains and an aggressive idle sound with this Stage 3 Camshaft Overhaul Kit. Designed specifically for Gen 3 and Gen 4 LS-based engines.

⚠️Please Note:
Cam Gear: 3-bolt design. Gen 4 engines require proper 3-bolt conversion components (specific 1x/4x reluctor gear & sensor setup).

Tuning: AFM/DOD & VVT systems MUST be completely deleted. Custom ECU tune required.
