Vehicle Compatibility (For LS-Based V8 Engines):
(⚠️Fitment Note: Please verify your engine displacement and year carefully. Custom ECU tuning is strongly recommended after installation.)
For LS1 / LS6 (5.7L V8):
1998-2002 Chevrolet Camaro SS
1997-2004 Chevrolet Corvette C5
1998-2002 Pontiac Firebird Formula / Trans Am
For LS2 (6.0L V8):
2005-2007 Chevrolet Corvette C6
2005-2006 Chevrolet SSR
2006-2009 Chevrolet TrailBlazer SS
2005-2006 Pontiac GTO
For LQ4 / LM7 (4.8L / 5.3L / 6.0L V8 Trucks & SUVs):
1999-2013 Chevrolet Silverado 1500 / 2500 / 3500
1999-2013 GMC Sierra 1500 / 2500 / 3500
2000-2013 Chevrolet Suburban
2000-2013 Chevrolet Tahoe
2000-2006 GMC Yukon
2000-2006 GMC Yukon XL
2002-2006 Chevrolet Avalanche
2002-2006 Cadillac Escalade

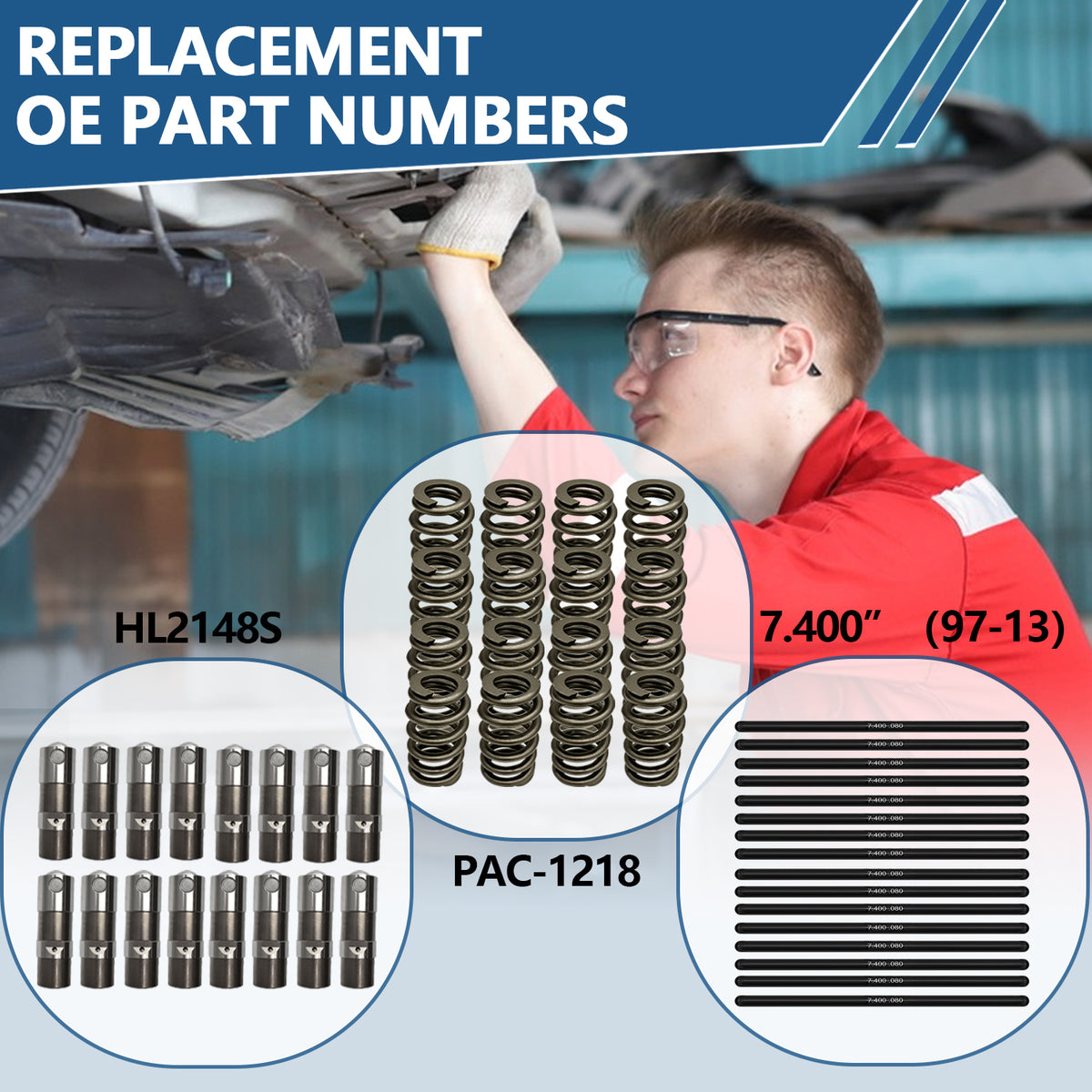

Interchange/OE Part Numbers: E1841P, PAC-1218, HL2148S.

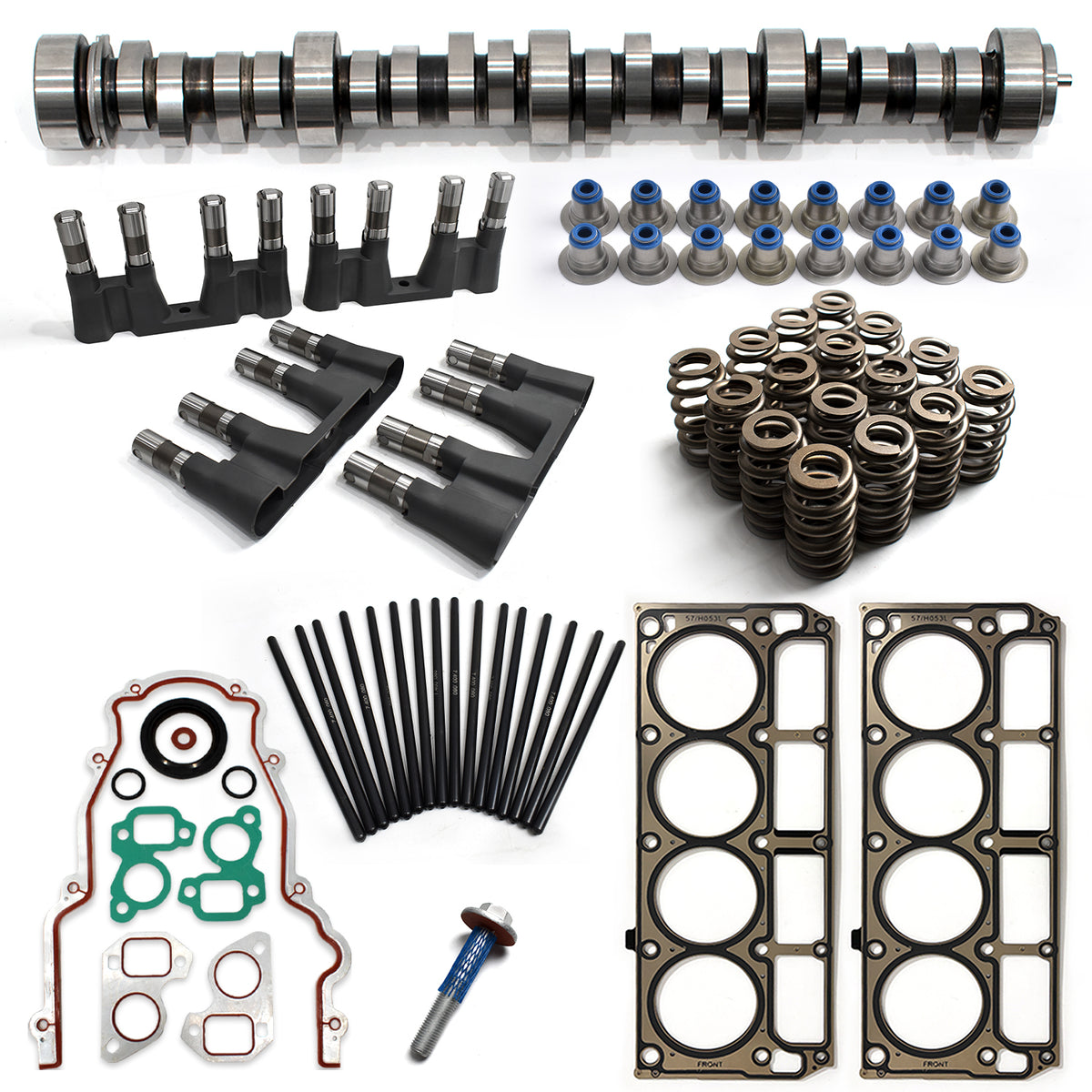

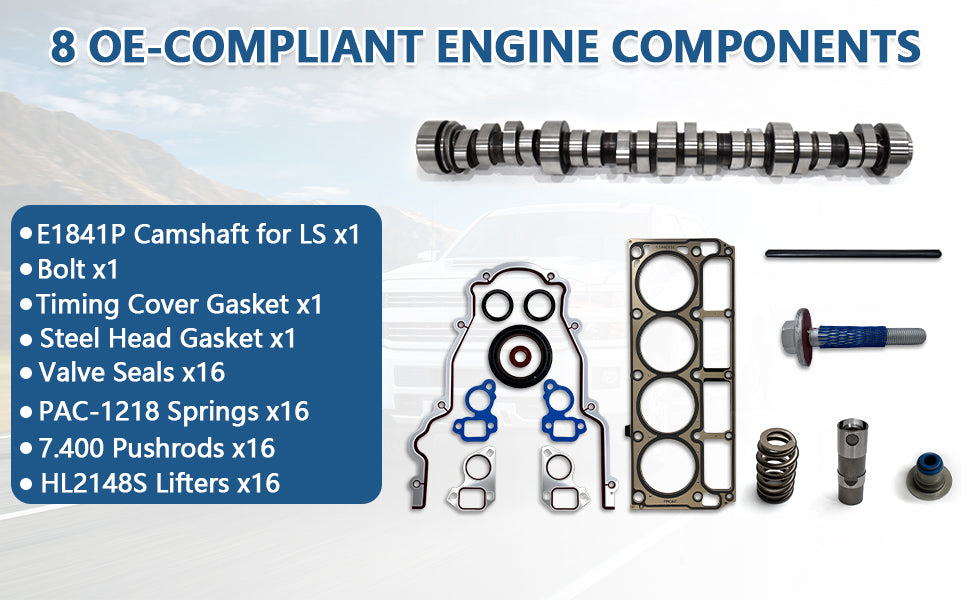

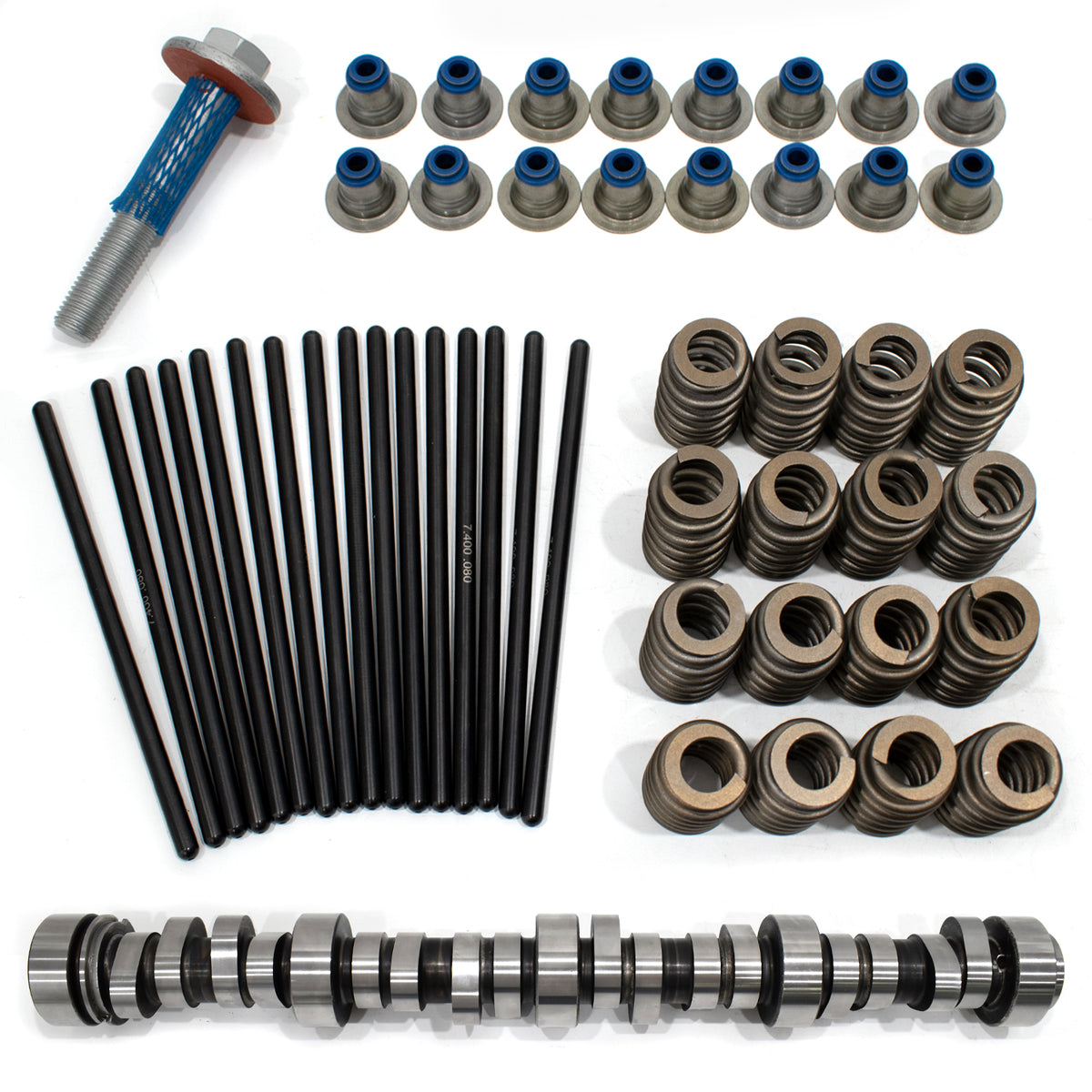

What's Included in the Package List:
- 1x E1841P Stage 3 Camshaft

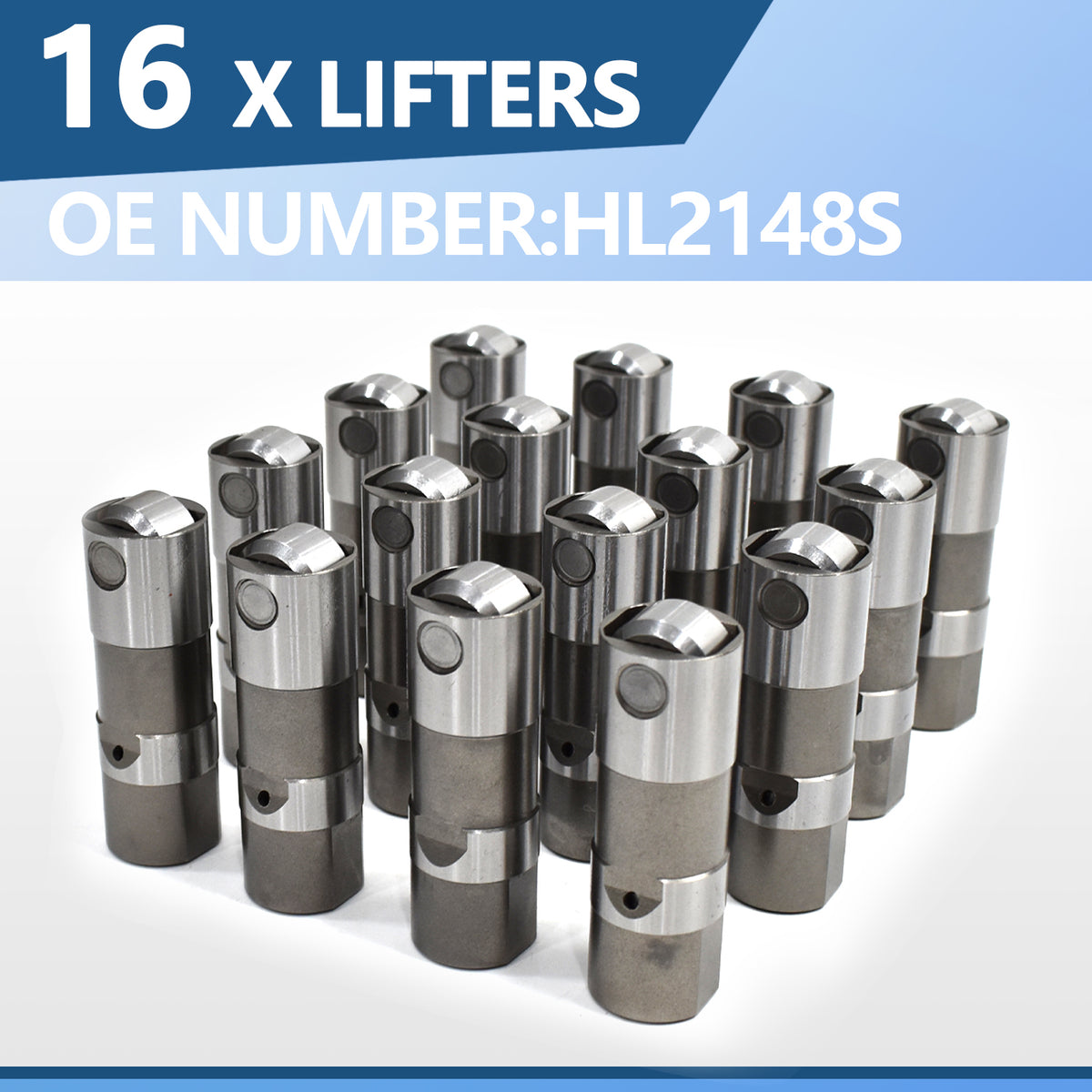

- 16x HL2148S Hydraulic Roller Lifters (with 4x Guide Trays)
- 16x PAC-1218 Valve Springs
- 16x 7.400" Pushrods
- 16x Valve Seals
- 2x Multiple Layers Steel (MLS) Head Gaskets
- 1x Timing Cover Gasket (Includes Front Crankshaft Seal & Water Pump Gaskets)
- 1x Harmonic Balancer Bolt

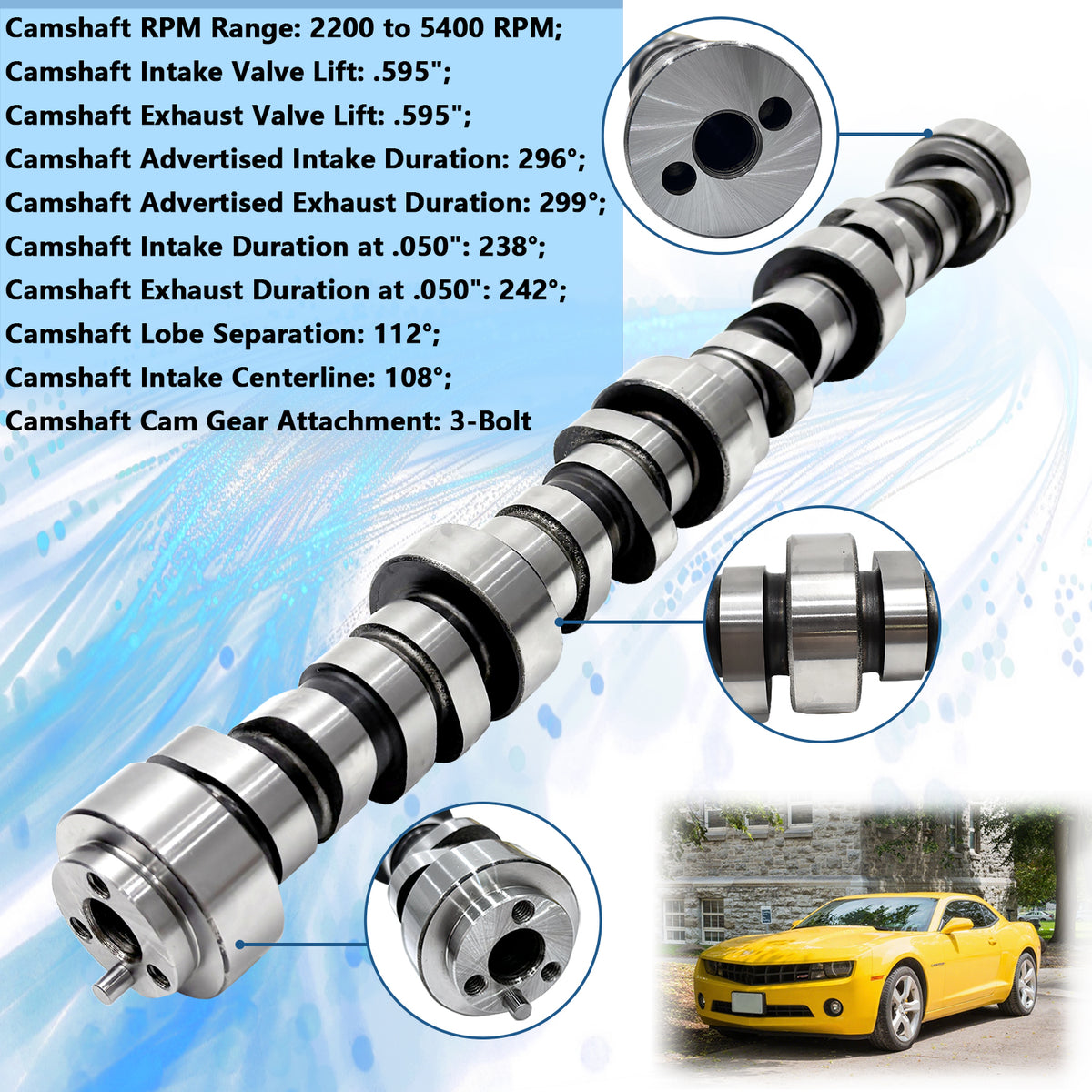

Camshaft Specifications:
-
Camshaft RPM Range: 2200 to 5400 RPM
-
Camshaft Intake Valve Lift: .595"
-
Camshaft Exhaust Valve Lift: .595"
-
Camshaft Advertised Intake Duration: 296°
-
Camshaft Advertised Exhaust Duration: 299°
-
Camshaft Intake Duration at .050": 238°
-
Camshaft Exhaust Duration at .050": 242°
-
Camshaft Lobe Separation: 112°
-
Camshaft Intake Centerline: 108°
-
Camshaft Cam Gear Attachment: 3-Bolt
Shipping & Package Specifications:
- Item Weight: 26.6 pounds
- Package Dimensions: 24 x 15.25 x 6 inches
Maximum Street Performance: Sloppy Stage 3 Camshaft & Valvetrain Overhaul Kit for GM LS V8
Are you ready to unlock massive power gains, crisp throttle response, and that unmistakable, aggressive "choppy" idle in your LS-powered project car or truck? Sourcing individual valvetrain upgrades for a high-performance camshaft swap can quickly lead to compatibility issues and frustrating technical delays. Take the guesswork out of your build and bulletproof your top-end with this Comprehensive Master Sloppy Stage 3 Camshaft and Valvetrain Kit. Specifically engineered for Gen 3 and Gen 4 LS-based 4.8L, 5.3L, 5.7L, and 6.0L engines, this all-in-one overhaul package provides every premium component required to handle heavy lift stress and execute a reliable camshaft swap in a single service.
The centerpiece of this high-performance package is the legendary E1841P Sloppy Stage 3 Camshaft, delivering an aggressive .595" intake/exhaust lift with a 112° lobe separation angle designed to optimize top-end power across a wide 2200 to 5400 RPM range. To safely manage the demands of this aggressive lift profile, we have pre-matched and bundled industry-standard valvetrain upgrades: 16 high-strength PAC-1218 Beehive valve springs, 16 heavy-duty 7.400" pushrods, and 16 high-performance hydraulic roller lifters with fresh trays. To ensure a professional-grade, leak-free reassembly, this master kit also features a complete top-to-bottom sealing set, including premium Multi-Layer Steel (MLS) cylinder head gaskets, a timing cover gasket, a complete head bolt set, valve seals, and necessary cam mounting hardware.
Camshaft Profile Specifications:
RPM Range: 2200 to 5400 RPM
Intake / Exhaust Valve Lift: .595" / .595"
Duration at .050": 238° Intake / 242° Exhaust (Advertised: 296° / 299°)
Lobe Separation / Intake Centerline: 112° / 108°
Cam Gear Attachment: Strong 3-Bolt Design
(⚠️ CRITICAL INSTALLATION NOTE: This master kit features a 3-bolt camshaft gear attachment. Custom ECU recalibration / computer tuning is strictly required after installation to handle the aggressive duration and ensure proper drivability. Due to the high-performance specifications and the requirement of cylinder head removal for lifter replacement, professional valvetrain geometry checking and installation are highly recommended.)
Engineered to transform your daily driver, truck, or race car into a high-powered machine. This comprehensive upgrade kit flawlessly fits a massive lineup of LS platforms, including 1999-2013 Chevrolet Silverado and GMC Sierra trucks/SUVs (4.8L/5.3L/6.0L LQ4/LM7), 1998-2002 Camaro SS and Firebird Trans Am, 1997-2004 Corvette C5 (LS1/LS6), and Gen IV LS2 6.0L engines found in the TrailBlazer SS and Pontiac GTO. Save time and build with absolute confidence by choosing BTSCAR's premium, pre-matched performance components.
