Vehicle Compatibility (For LS-Based V8 Engines):
(Fitment Note: Please verify your engine displacement and year carefully. An upgraded high-stall torque converter (3000+ stall) and professional custom ECU tuning are REQUIRED for optimal performance and drivability with this aggressive Stage 3 profile.)
For LS1 / LS6 (5.7L V8):
1998-2002 Chevrolet Camaro SS
1997-2004 Chevrolet Corvette C5
1998-2002 Pontiac Firebird Formula / Trans Am
For LS2 (6.0L V8):
2005-2007 Chevrolet Corvette C6
2005-2006 Chevrolet SSR
2006-2009 Chevrolet TrailBlazer SS
2005-2006 Pontiac GTO
For LS3 (6.2L V8):
2008-2013 Chevrolet Corvette C6
2010-2013 Chevrolet Camaro SS
For LQ4 / LM7 (4.8L / 5.3L / 6.0L V8 Trucks & SUVs):
1999-2013 Chevrolet Silverado 1500 / 2500 / 3500
1999-2013 GMC Sierra 1500 / 2500 / 3500
2000-2013 Chevrolet Suburban 1500 / 2500
2000-2013 Chevrolet Tahoe
2000-2006 GMC Yukon / Yukon XL
2002-2006 Chevrolet Avalanche
2002-2006 Cadillac Escalade
Interchange/OE Part Numbers: E1841P, PAC-1218, HL2148S.

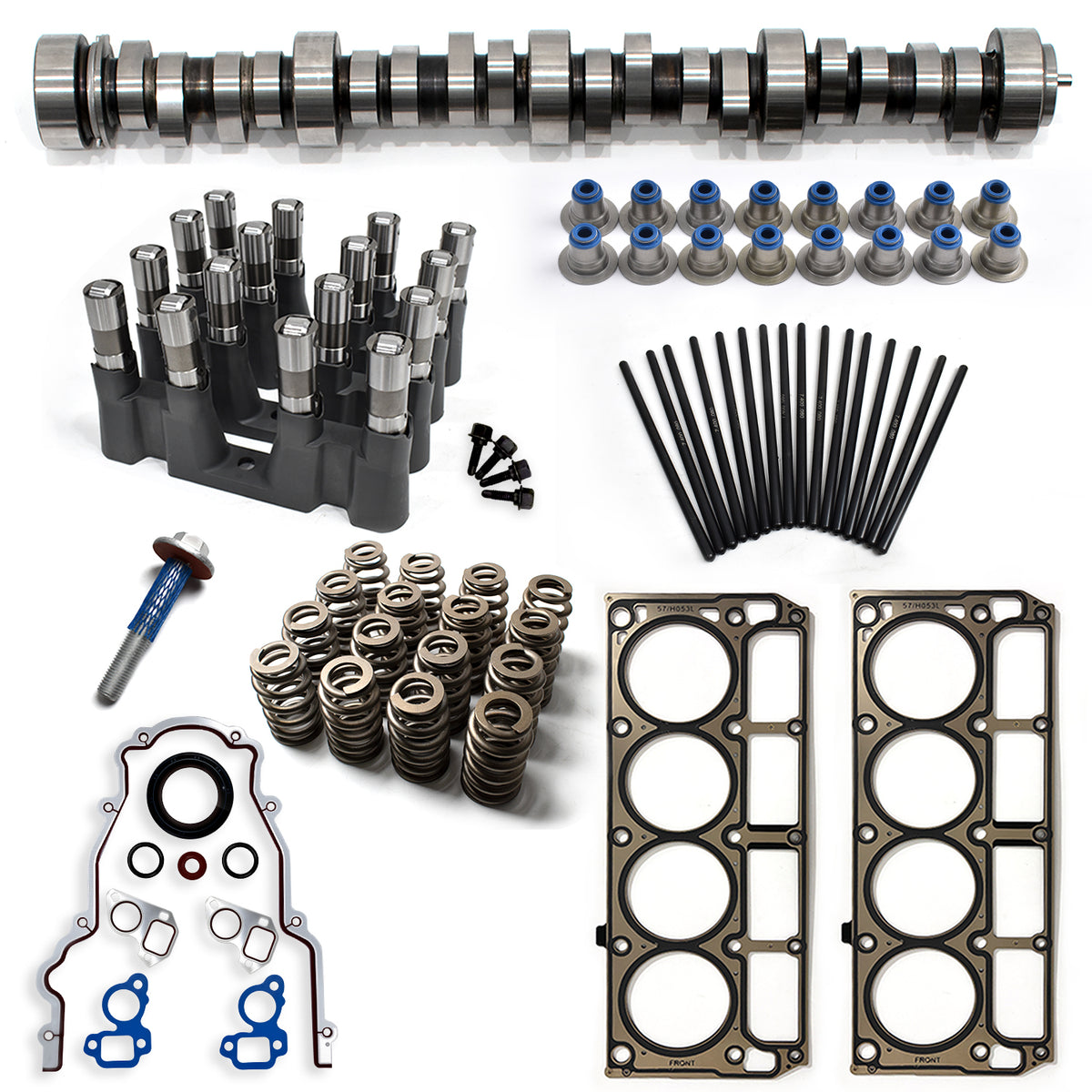

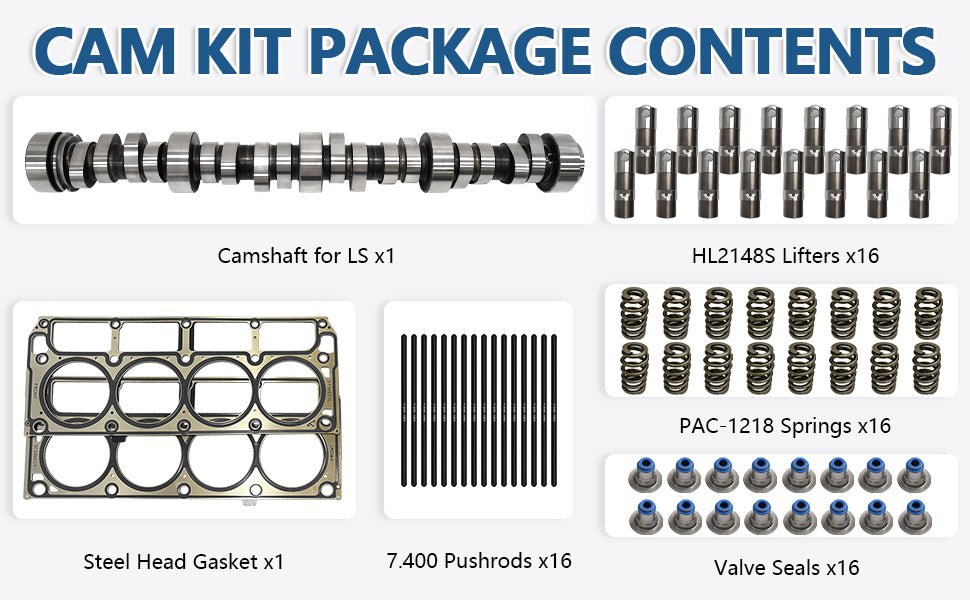

What's Included in the Package List:
- 1x Stage 3 Performance Camshaft (Specs: 238/242 @.050", .595"/.595" Lift, 112 LSA)

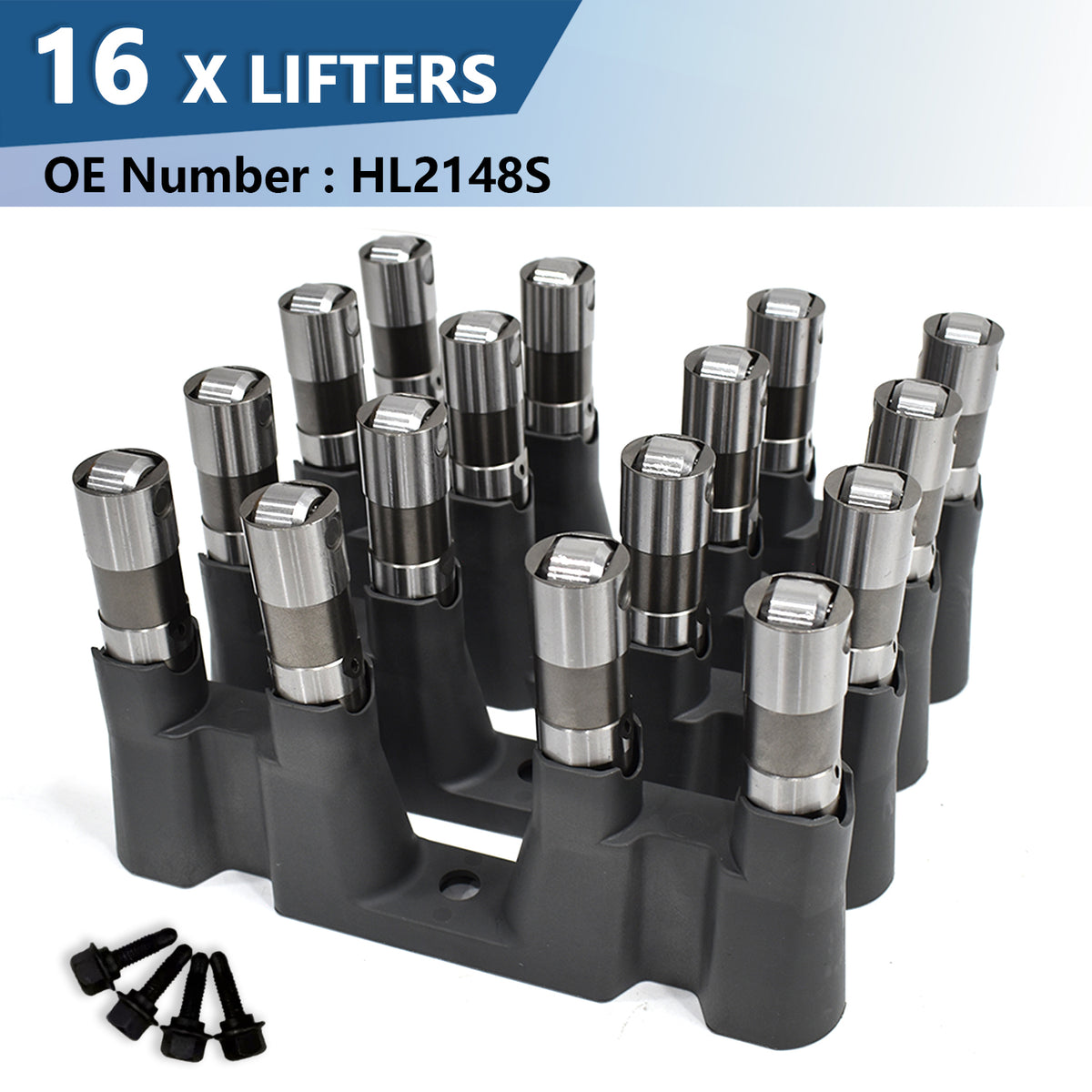

- 16x HL2148S Hydraulic Roller Lifters (with 4x Guide Trays)

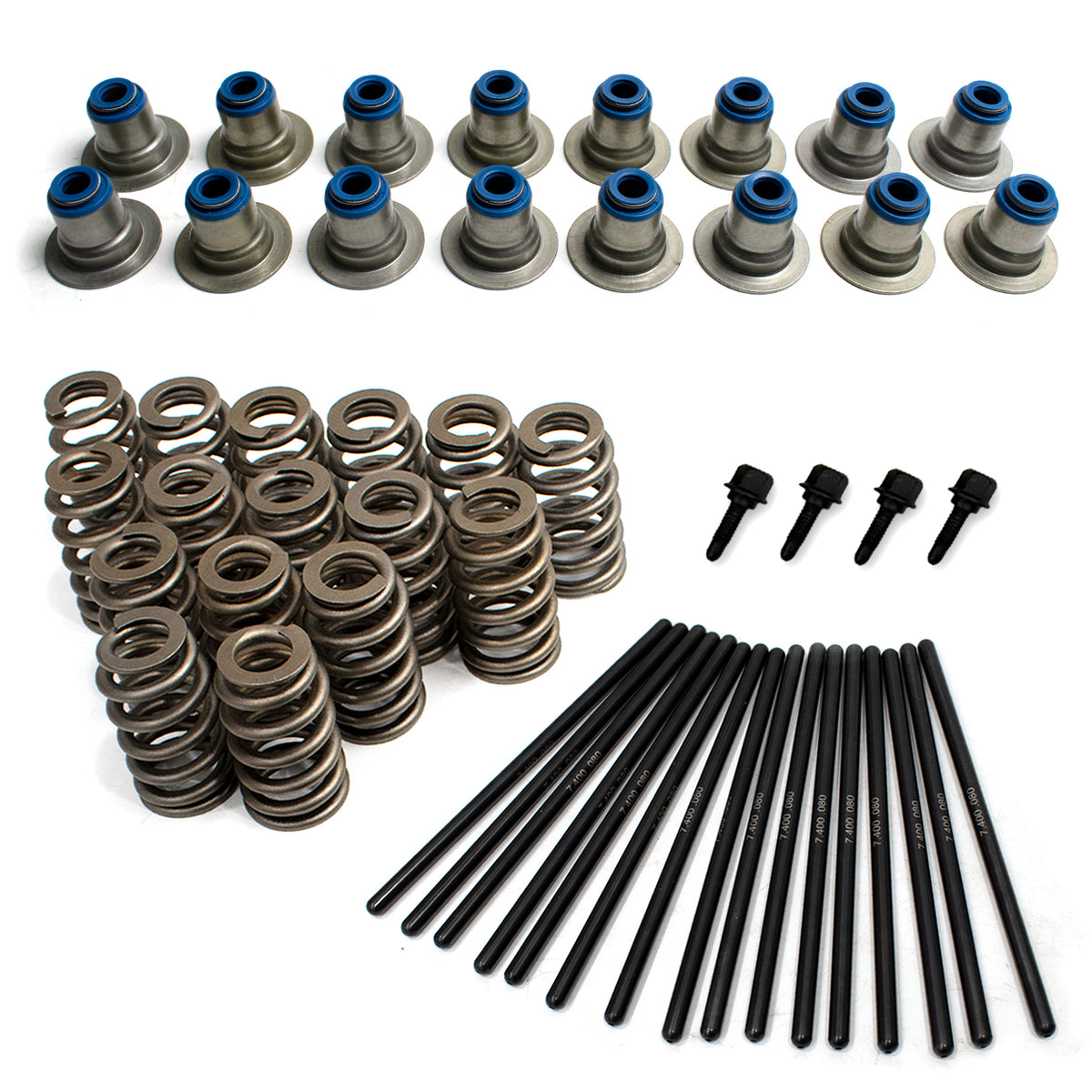

- 16x PAC-1218 Beehive Valve Springs
- 16x 7.400" Chromoly Pushrods
- 16x Valve Stem Seals

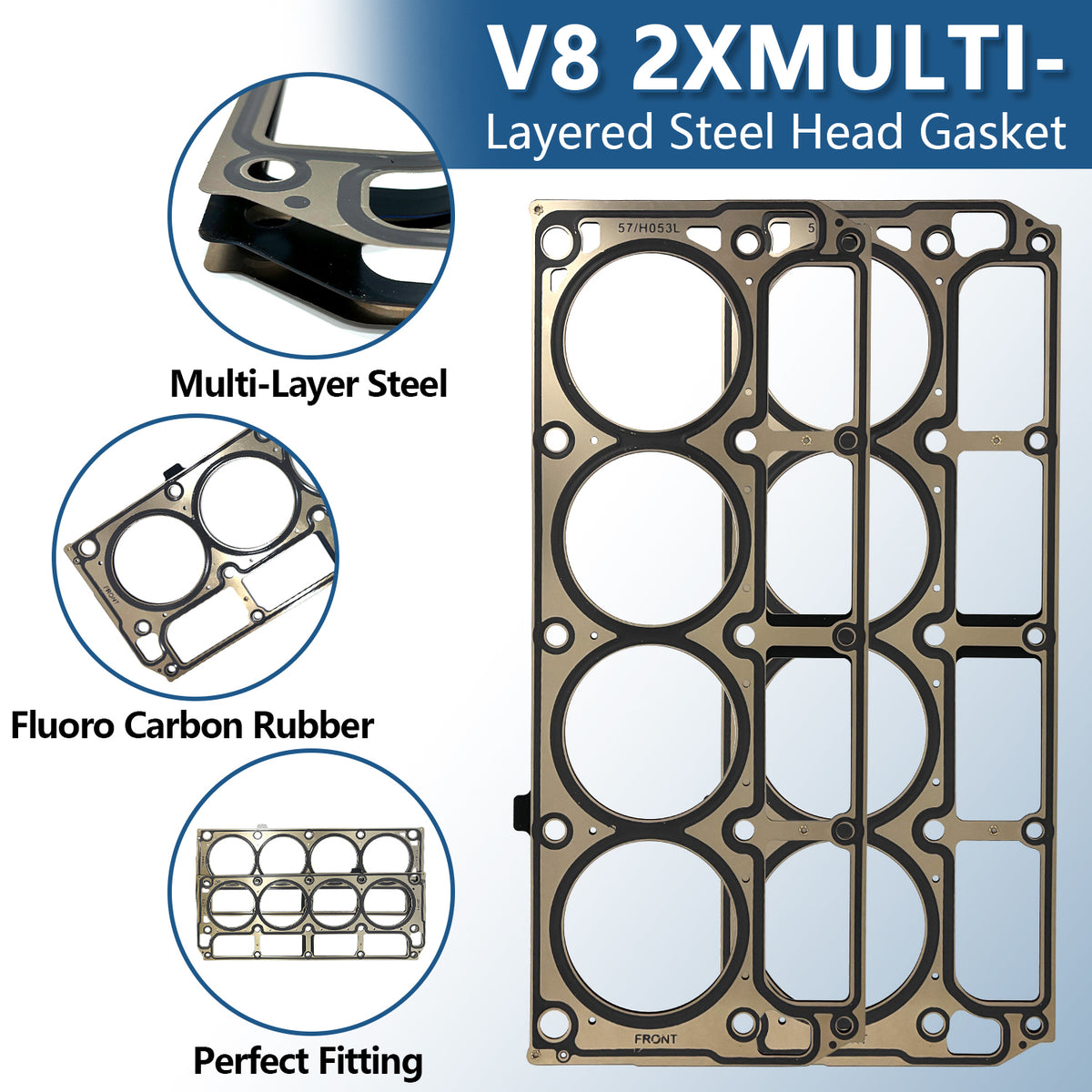

- 2x Multiple Layers Steel (MLS) Head Gaskets
- 1x Timing Cover Gasket & Front Seal
- 1x Harmonic Balancer Bolt

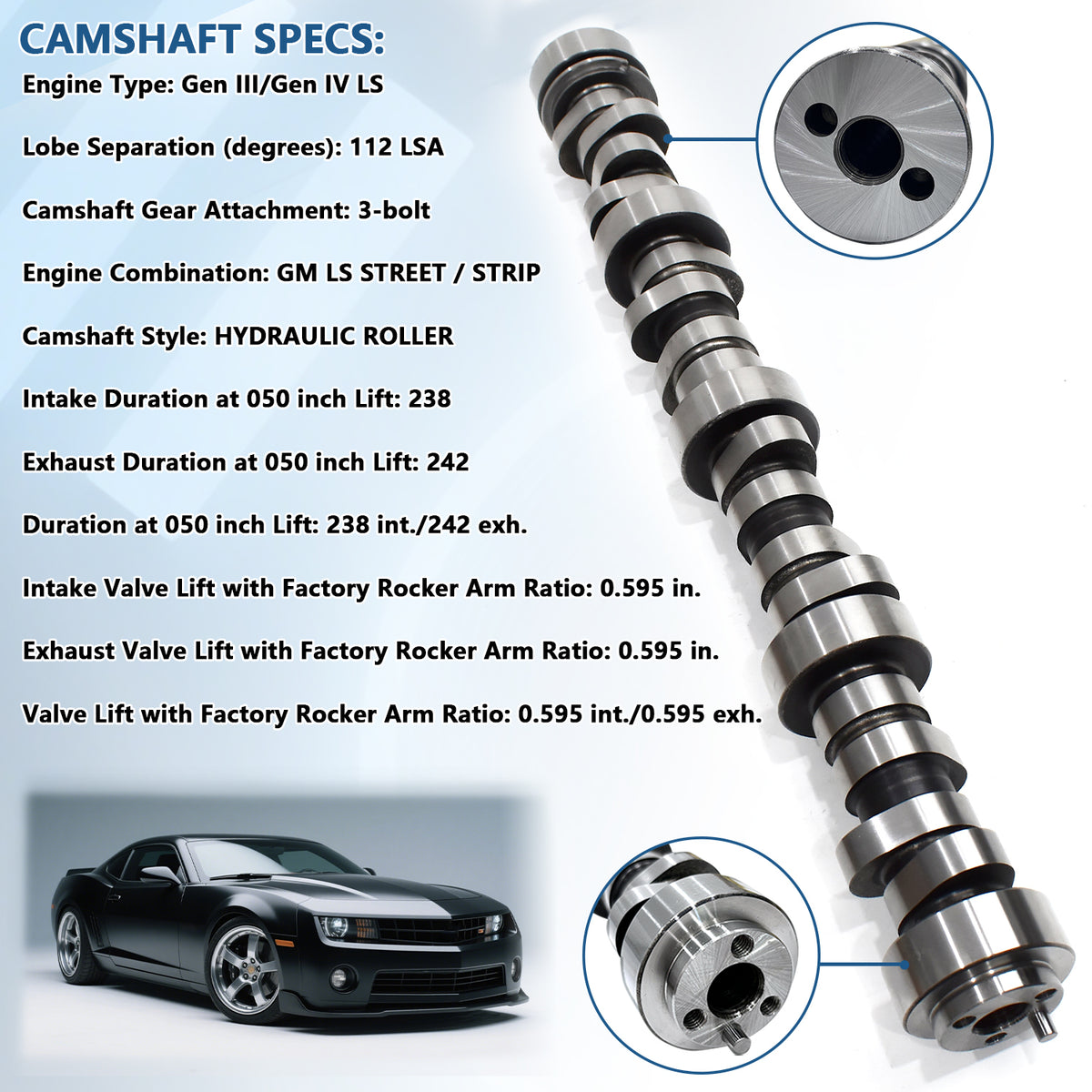

Camshaft Specifications:
-
Camshaft RPM Range: 2200 to 5400 RPM
-
Camshaft Intake Valve Lift: .595"
-
Camshaft Exhaust Valve Lift: .595"
-
Camshaft Advertised Intake Duration: 296°
-
Camshaft Advertised Exhaust Duration: 299°
-
Camshaft Intake Duration at .050": 238°
-
Camshaft Exhaust Duration at .050": 242°
-
Camshaft Lobe Separation: 112°
-
Camshaft Intake Centerline: 108°
-
Camshaft Cam Gear Attachment: 3-Bolt
Shipping & Package Specifications:
-
Item Weight: 27.9 pounds
-
Package Dimensions: 24 x 15 x 6 inches
Maximum Street Performance: Premium LS Stage 3 Camshaft & Top-End Overhaul Kit
Are you ready to unlock massive high-RPM horsepower, blistering throttle response, and that extremely aggressive, "choppy" idle sound in your LS-powered street machine or truck? Sourcing individual valvetrain and sealing components for a high-performance camshaft swap can be a frustrating and time-consuming process that often leads to missing parts and costly installation delays. Eliminate the guesswork and bulletproof your engine's top-end with this Premium Stage 3 Camshaft and Valvetrain Overhaul Kit. Specifically engineered for Gen 3 and Gen 4 LS-based 4.8L, 5.3L, 5.7L, 6.0L, and 6.2L engines, this comprehensive package is the ultimate foundation for enthusiasts seeking maximum power output and reliability in a single service.
At the heart of this high-performance set is the renowned E1841P Stage 3 Camshaft, delivering a massive .595" intake/exhaust lift designed to optimize high-RPM breathing and power delivery. To safely handle the extreme demands of this aggressive lift profile without coil bind or valve float, we have bundled industry-standard valvetrain upgrades: 16 high-strength PAC-1218 Beehive valve springs, 16 heavy-duty 7.400" chromoly pushrods, and 16 premium HL2148S hydraulic roller lifters (complete with fresh lifter trays). Because replacing the lifters on an LS engine requires the removal of the cylinder heads, this kit conveniently provides an essential top-end sealing solution, including premium Multiple Layers Steel (MLS) cylinder head gaskets, a timing cover gasket with a front seal, valve stem seals, and your essential crankshaft/camshaft retainer bolt.
Camshaft Profile Specifications:
Intake / Exhaust Valve Lift: .595" / .595"
Duration at .050": 238° Intake / 242° Exhaust
Lobe Separation (LSA): 112°
Cam Gear Attachment: Strong 3-Bolt Design
(⚠️ CRITICAL KIT CONFIGURATION & INSTALLATION NOTE: This listing includes the mechanical camshaft, valvetrain components, and MLS head gaskets ONLY. It DOES NOT include cylinder head bolts, which are torque-to-yield and MUST be purchased separately to complete your cylinder head installation. Additionally, an upgraded high-stall torque converter (3000+ stall) and professional custom ECU tuning are REQUIRED for optimal performance and drivability with this aggressive Stage 3 profile. Professional installation is highly recommended.)
Engineered to transform your daily driver, track car, or custom truck into a high-powered street performer. This comprehensive upgrade kit flawlessly fits a massive lineup of LS platforms, including 1999-2013 Chevrolet Silverado and GMC Sierra trucks/SUVs (4.8L/5.3L/6.0L LQ4/LM7), 1998-2002 Camaro SS and Firebird Trans Am, Corvette C5/C6 (LS1/LS2/LS3), and Gen IV 6.2L Camaro platforms. Build with absolute confidence and modify your valvetrain the right way with BTSCAR's premium performance components.
