Replaces OE/Part Numbers: PAC-1218 (Springs), HL2148S (Lifters), M295 (Oil Pump)

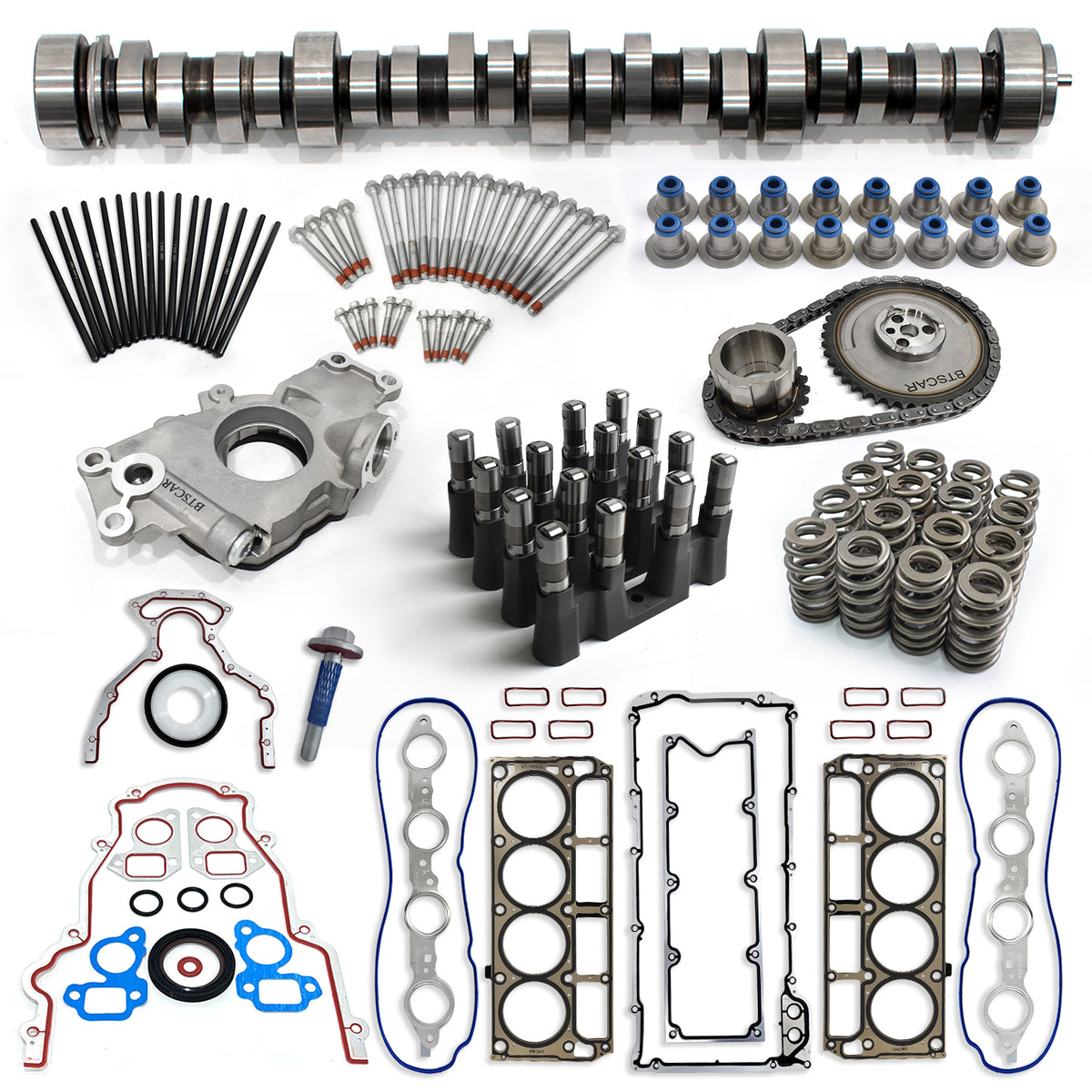

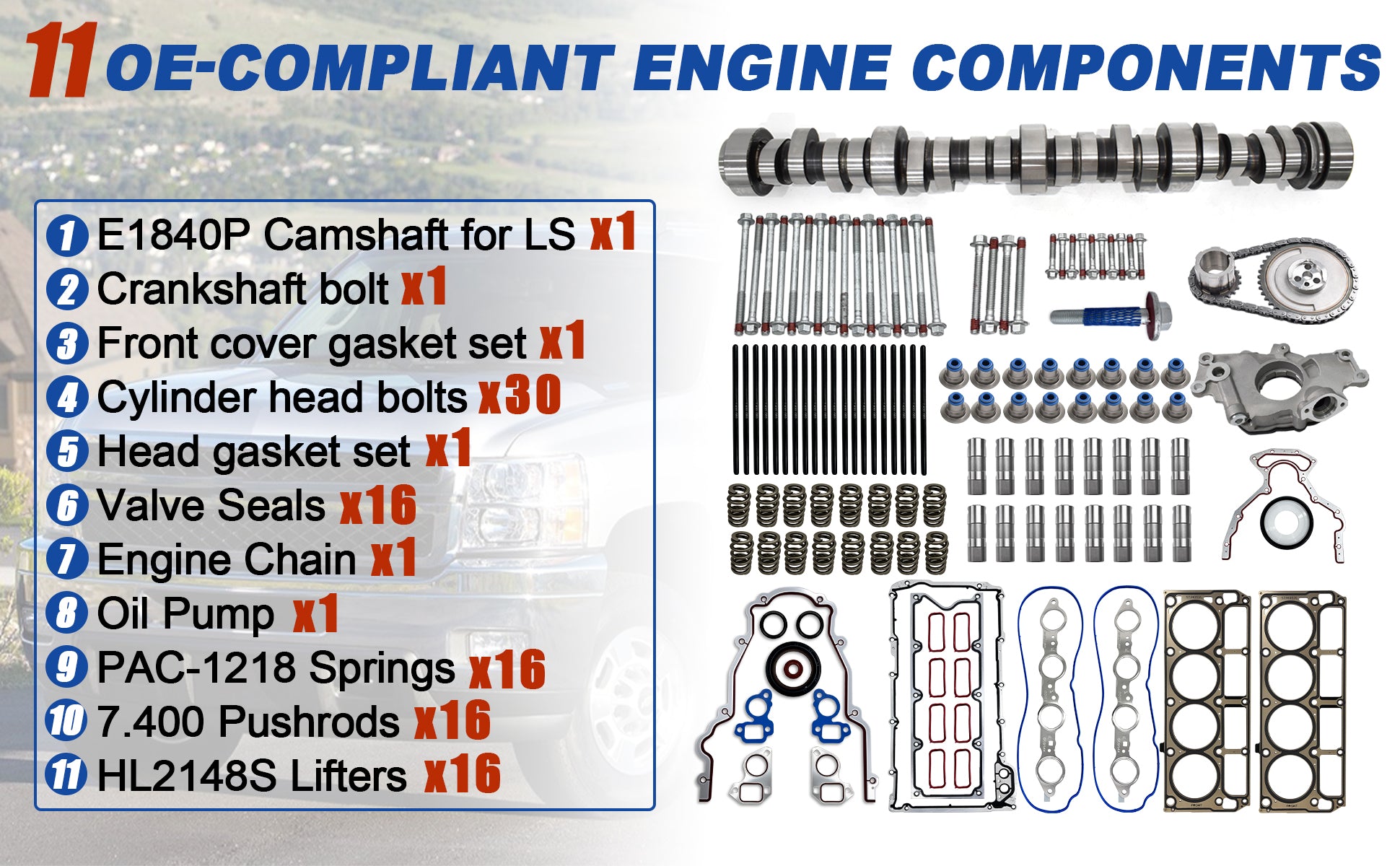

What's Included in the Package (Complete Overhaul Set):
- 1x E1840P Stage 2 Camshaft

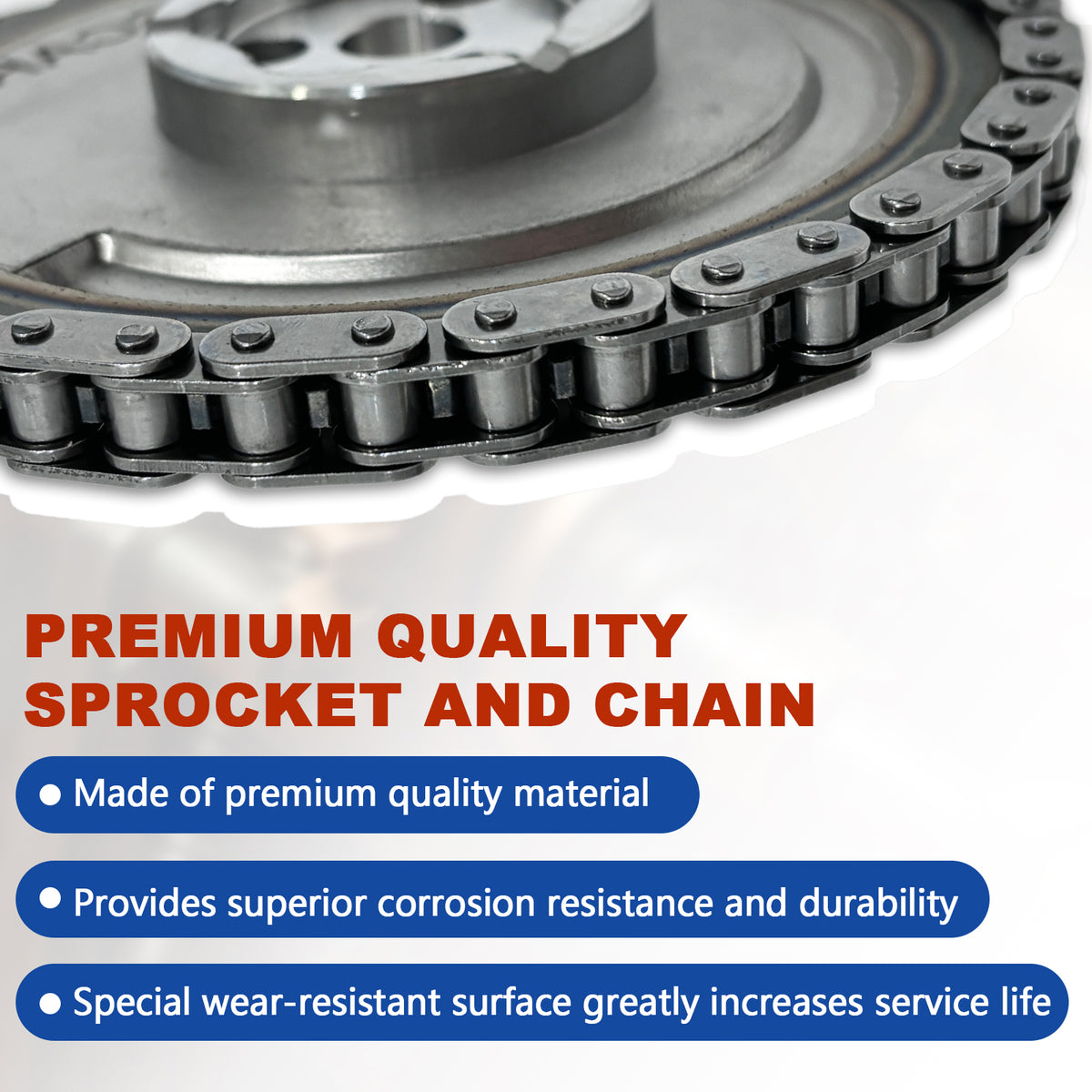

- 1x Heavy-Duty Timing Chain (3-Bolt Gear)

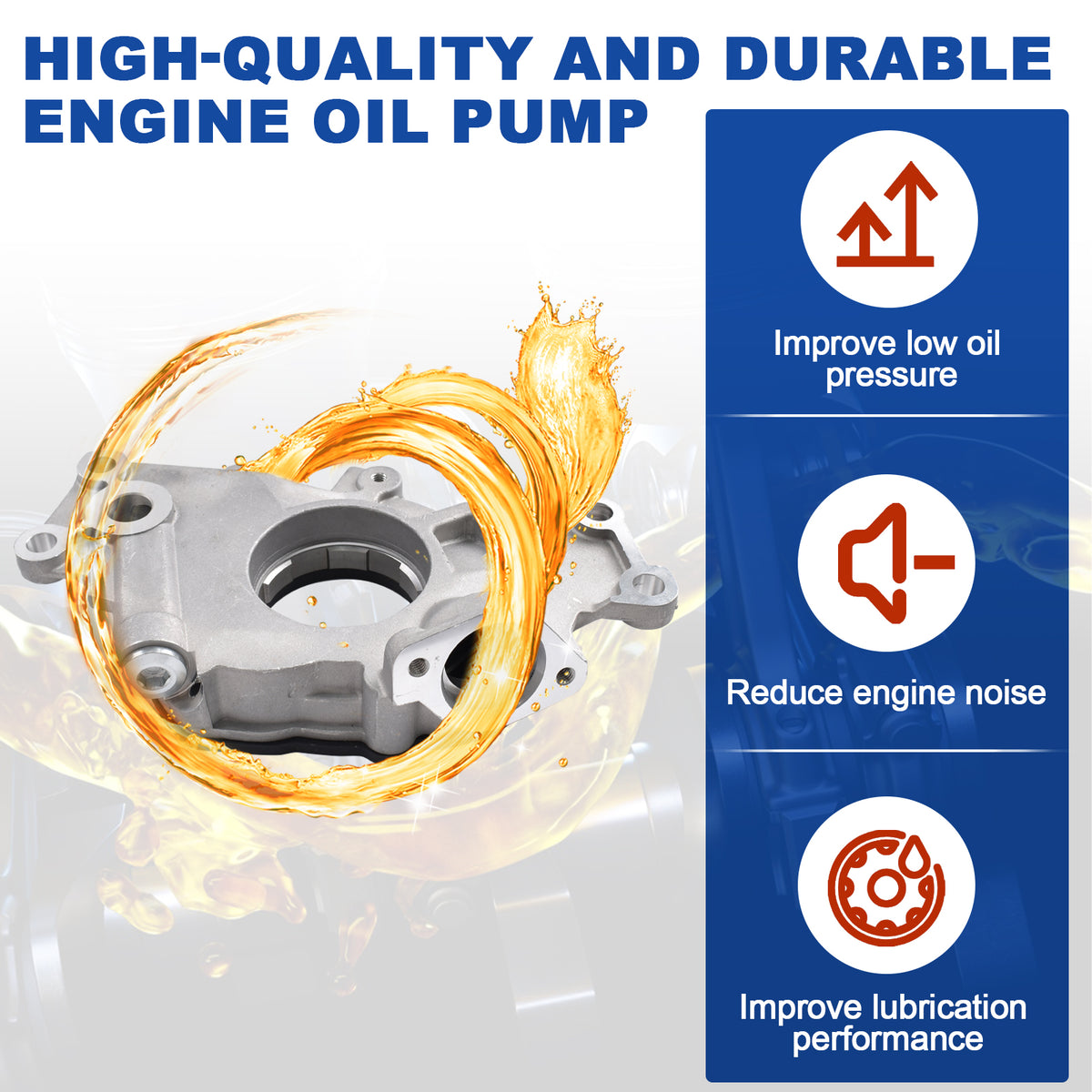

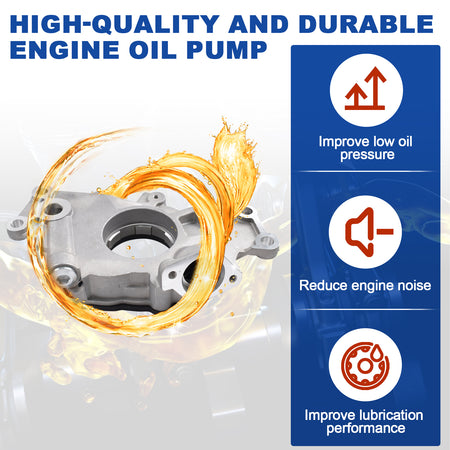

- 1x High-Volume Oil Pump

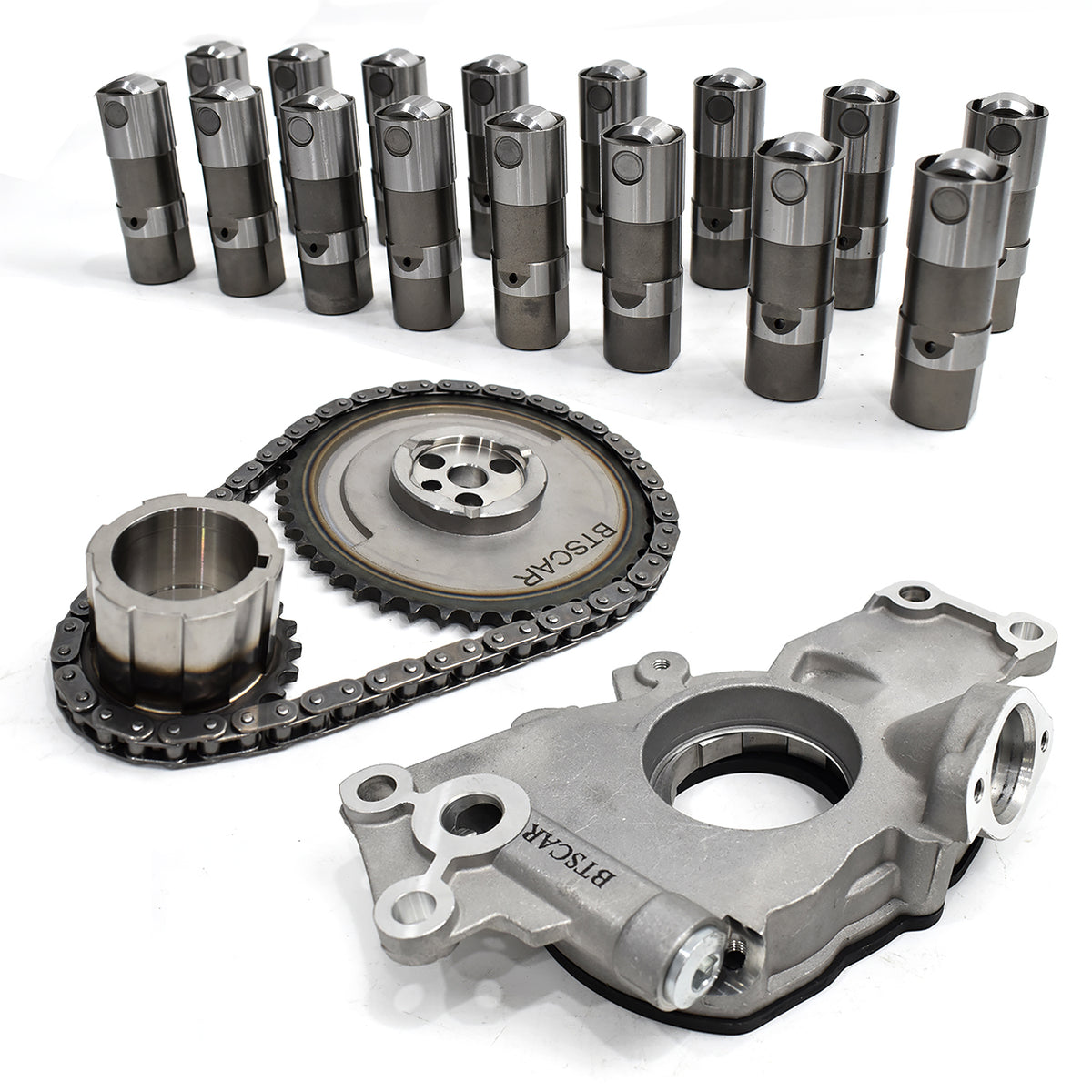

- 16x HL2148S Lifters with Trays (With 4x Guide Trays)

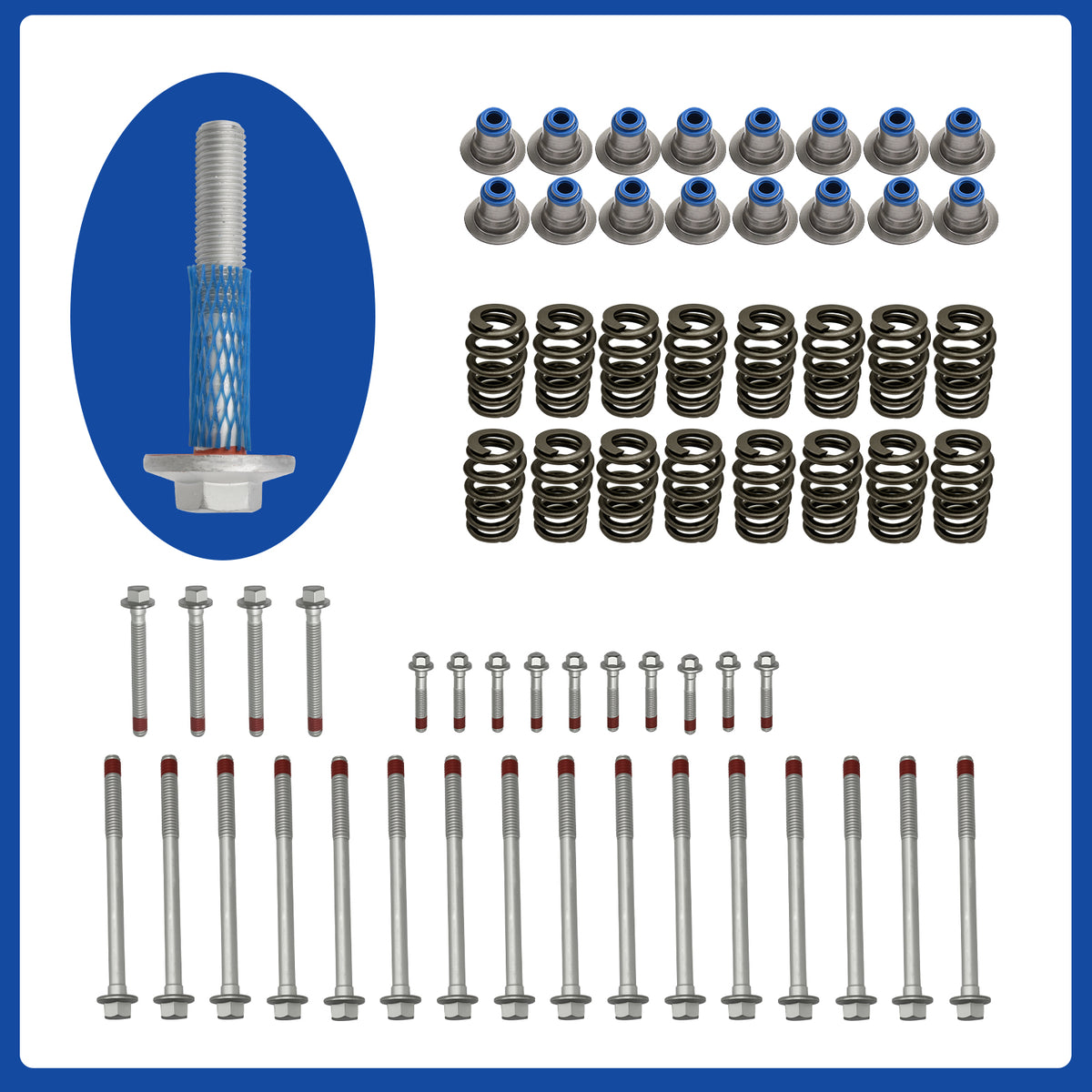

- 16x PAC-1218 Beehive Valve Springs
- 16x 7.400" Chromoly Pushrods
- 16x Premium Valve Stem Seals
- 2x Valve Cover Gaskets
- 2x Multi-Layer Steel (MLS) Cylinder Head Gaskets
- 30x Cylinder Head Bolts (Old Style Not Equal Length)
- 1x Timing Cover & Water Pump Gasket Set
- 1x Harmonic Balancer Bolt

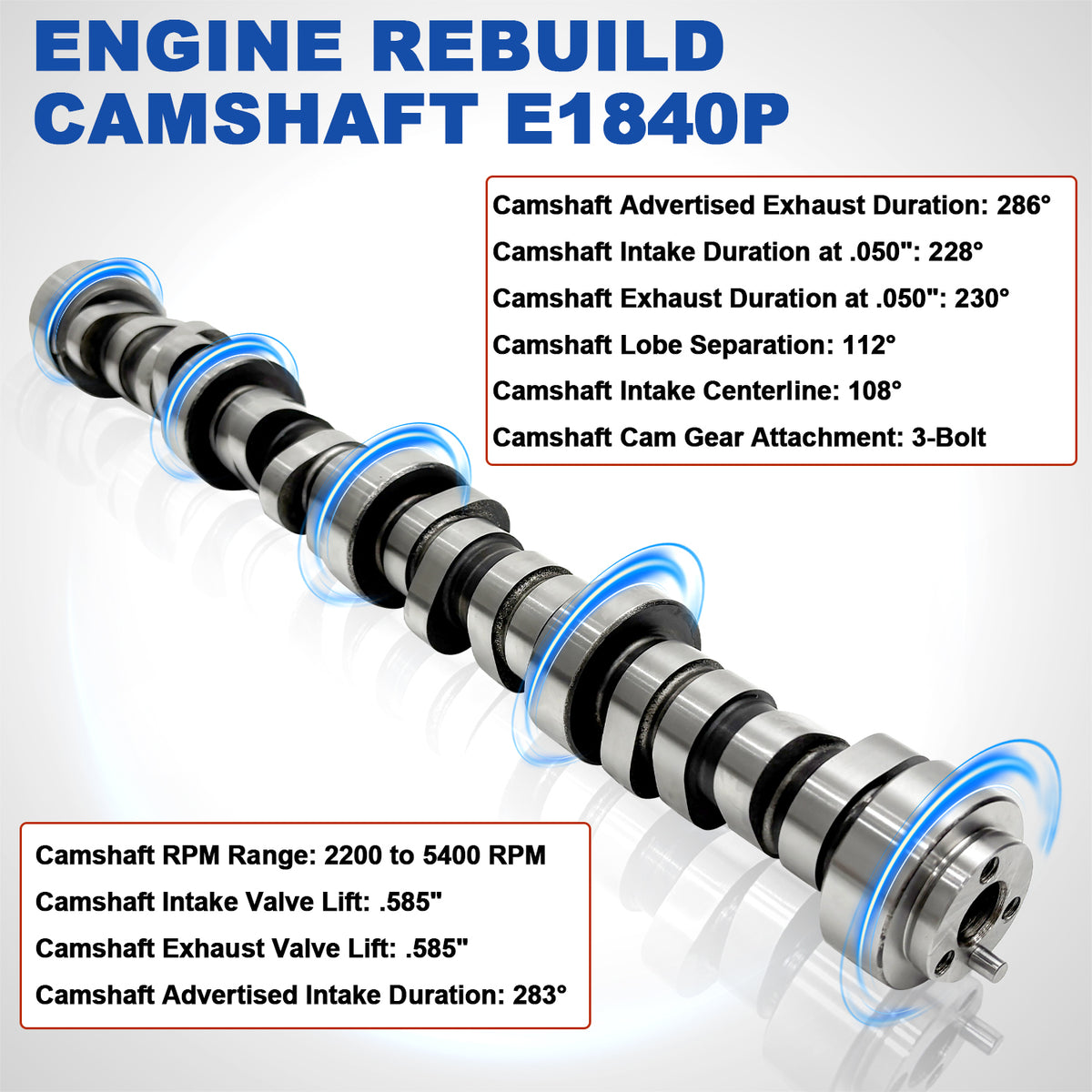

Camshaft Specifications:
- Camshaft RPM Range: 2200 to 5400 RPM
- Camshaft Intake Valve Lift: .585"
- Camshaft Exhaust Valve Lift: .585"
- Camshaft Advertised Intake Duration: 283°
- Camshaft Advertised Exhaust Duration: 286°
- Camshaft Intake Duration at .050": 228°
- Camshaft Exhaust Duration at .050": 230°
- Camshaft Lobe Separation: 112°
- Camshaft Intake Centerline: 108°
- Camshaft Cam Gear Attachment: 3-Bolt
Shipping & Package Specifications:
- Item Weight: 37.8 pounds
- Package Dimensions: 25 x 15.02 x 8 inches
Vehicle Compatibility (For Gen 3 LS Engines 4.8L / 5.3L / 5.7L / 6.0L)
Please Note: This kit includes early-style (1997-2003) unequal-length cylinder head bolts. If you are installing this on a 2004 or newer engine block, you will need to source late-style equal-length head bolts separately.
For LS1/LS6 (5.7L):
1998–2002 Chevrolet Camaro SS
1998–2002 Pontiac Firebird Formula, Trans Am
1997–2004 Chevrolet Corvette C5
For LS2 (6.0L):
2005–2007 Chevrolet Corvette C6
2005–2006 Chevrolet SSR
2006–2009 Chevrolet TrailBlazer SS
2005–2006 Pontiac GTO
For 4.8L/5.3L/6.0L (LQ4/LM7):
1999–2007 Chevrolet Silverado / Sierra
2000–2006 Chevrolet Suburban / Tahoe
2002–2006 Chevrolet Avalanche
2000–2006 GMC Yukon / Yukon XL
2002–2006 Cadillac Escalade
Ultimate Street Performance: Comprehensive Gen 3 LS Stage 2 Camshaft & Valvetrain Overhaul Kit
Are you ready to unlock massive horsepower gains, crisp throttle response, and that iconic, aggressive muscle-car idle in your Gen 3 LS engine? Sourcing individual valvetrain components for a high-performance camshaft swap can lead to compatibility headaches and costly missing-part delays. Eliminate the guesswork and bulletproof your internal assembly with this Comprehensive Master Stage 2 Camshaft and Valvetrain Kit. Specifically engineered for Gen 3 LS-series 4.8L, 5.3L, 5.7L, and 6.0L blocks, this all-in-one overhaul package delivers every premium component required to handle high-lift stress and perform a total top-end restoration in a single service.
The center of this high-performance package is the legendary E1840P Stage 2 Camshaft, delivering an aggressive .585" intake/exhaust lift with a 112° lobe separation angle that optimizes power across a broad 2200 to 5400 RPM range. To safely manage this aggressive lift, we have bundled industry-standard valvetrain upgrades: 16 high-strength PAC-1218 Beehive valve springs, 16 heavy-duty 7.400" chromoly pushrods, 16 premium LS7-style lifters with fresh guides, and a high-volume oil pump to ensure consistent oil pressure. Additionally, this kit provides a complete top-to-bottom sealing and mounting solution, including premium Multi-Layer Steel (MLS) cylinder head gaskets, a complete 30-piece head bolt set, a timing cover and water pump gasket set, a heavy-duty timing chain, and necessary hardware.
Camshaft Profile Specifications:
RPM Range: 2200 to 5400 RPM
Intake / Exhaust Valve Lift: .585" / .585"
Duration at .050": 228° Intake / 230° Exhaust (Advertised: 283° / 286°)
Lobe Separation / Intake Centerline: 112° / 108°
Cam Gear Attachment: Strong 3-Bolt Design
(⚠️ CRITICAL INSTALLATION NOTE: This master kit is designed specifically for Gen 3 LS-series 3-bolt camshaft architectures. Due to the high-performance specifications and the requirement of cylinder head removal for lifter installation, professional valvetrain geometry checking and installation are highly recommended. Always verify your engine block generation and specs before purchasing.)
Engineered to transform your classic truck or street machine into a high-powered performer. This comprehensive upgrade kit flawlessly fits a massive lineup of Gen 3 platforms, including the 1999–2007 Chevrolet Silverado/Sierra and Tahoe/Yukon (4.8L/5.3L/6.0L LQ4/LM7), the 1998–2002 Camaro SS/Firebird Trans Am, the 1997–2004 Corvette C5 (LS1/LS6), and early LS2 6.0L applications like the TrailBlazer SS and Pontiac GTO. Save time and build with absolute confidence by choosing BTSCAR's premium, pre-matched valvetrain components.
